Quick answer: choose an e-bike battery by matching the complete electrical system, not by selecting the highest voltage or amp-hour figure. A 36V, 48V or 52V battery must be supported by the motor, controller, display, wiring, charger and connectors. Increasing voltage without confirmed compatibility can damage components and create a serious safety risk.
This UK guide explains the practical difference between 36V, 48V and 52V e-bike batteries, how to compare watt-hours, what a battery-management system does and what to measure before ordering. You can then compare compatible options in the E-Bike Batteries UK collection.
36V vs 48V vs 52V e-bike batteries at a glance
| Nominal voltage | Common context | Compatibility priority |
|---|---|---|
| 36V | Common on lower-voltage commuter bikes and conversion systems | Use only with a controller, motor, display and charger specified for the battery |
| 48V | Common across many hub-motor and mid-drive systems | Confirm controller voltage range, current demand, connector and mounting case |
| 52V | Used by some compatible conversion and higher-performance systems | Do not assume a 48V system accepts 52V; verify every component |
| 72V | Usually associated with specialised, higher-power builds | Requires a specifically designed motor, controller, display, wiring, charger and safe intended use |
Voltage alone does not determine quality, range or UK road legality. It describes the battery system's nominal electrical potential. The completed bicycle's motor rating, assisted-speed behaviour, pedals and approval status determine how it can legally be used.
What does e-bike battery voltage mean?
Voltage must be treated as a system specification. The battery, controller and charger are designed around defined voltage limits. Displays, lights and accessories can also depend on that system voltage.
A battery labelled 48V should not automatically be connected to a 36V system, even if a connector can be adapted. Equally, a 52V battery is not a harmless capacity upgrade for every 48V controller. Check the manufacturers' stated voltage ranges and component documentation.
Ah versus Wh: how to compare capacity
Amp-hours (Ah) describe charge capacity. Watt-hours (Wh) give a more useful comparison of stored energy across different voltages. A simple nominal calculation is:
Watt-hours = nominal voltage × amp-hours
- 36V × 20Ah = approximately 720Wh
- 48V × 17.5Ah = approximately 840Wh
- 52V × 19.2Ah = approximately 998Wh
These are nominal comparisons, not guaranteed usable energy or range figures. Battery-management limits, cell condition, temperature and system efficiency affect what is available in practice.
Does a higher-capacity battery give more range?
Within the same compatible system, more watt-hours generally mean more stored energy. Real riding range still changes with:
- assistance level and throttle use where legally permitted;
- rider and cargo weight;
- hills, headwinds and stop-start riding;
- tyre pressure, tyre width and drivetrain condition;
- temperature and battery age;
- motor and controller efficiency.
Compare watt-hours rather than Ah alone when the voltages differ, and retain a sensible return-journey margin instead of treating a supplier's maximum range as a promise.
Why BMS current matters
A battery-management system (BMS) monitors and protects the pack. Its current capability must suit the controller's demand. A battery with the correct voltage and connector can still be unsuitable if its cells or BMS cannot safely supply the required current.
The UK Government's statutory lithium-ion battery safety guidelines explain that an effective protection system should guard against over-voltage, under-voltage, over-current and unsafe cell temperatures. Ask for clear battery, BMS and controller specifications rather than relying on a case label alone.

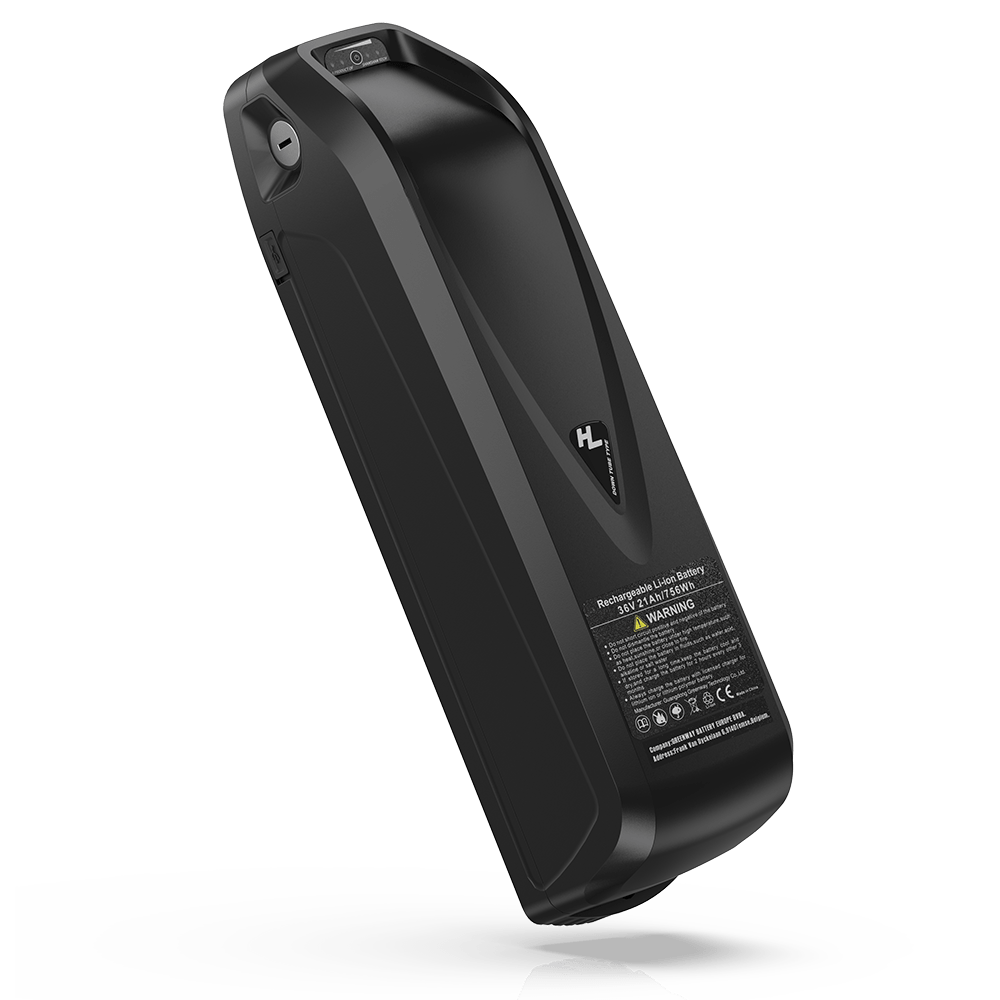

Physical fit: Hailong, rear-rack and triangle batteries
Electrical compatibility does not prove physical fit. Battery styles include down-tube cases such as Hailong formats, rear-rack batteries and triangle packs. Before ordering:
- Record the published case and mounting-rail dimensions.
- Make a cardboard template including the removal direction.
- Check bottle-boss positions and mounting strength.
- Turn the handlebars and move the pedals through a full rotation.
- Allow for suspension movement, cables, connectors and the key.
- Confirm the battery can be fitted securely without contacting the tyre, crank, chainring or frame.
Use the conversion-kit compatibility checklist for the complete wheel, dropout, brake and battery-space assessment.
Connectors and polarity
Connector shape is only one part of compatibility. Confirm the pin assignment, polarity, voltage and current rating. Similar-looking plugs may be wired differently. Never join wires based only on colour, and do not energise a newly adapted connection until the specification has been checked.
If a connector or mount needs changing, use a competent e-bike technician who can verify the electrical and mechanical requirements.
Choosing the correct charger
Use the charger supplied with the battery or a replacement explicitly approved by the battery manufacturer. The charger's output voltage, charging current, connector and polarity must all match.
The London Fire Brigade's charging guidance advises using the supplied or manufacturer-recommended charger, charging away from escape routes, unplugging when charging is complete and never charging unattended or while asleep.
Battery buying checklist
- Nominal battery voltage matches the complete system.
- Controller current demand is within the battery and BMS specification.
- Watt-hours suit the intended journeys and weight constraints.
- Cell, pack and safety information is documented.
- Case, rail and removal path fit the bicycle.
- Connector pin assignment and polarity are confirmed.
- A correct, compatible charger is supplied or specified.
- Warranty, instructions and seller contact details are clear.
- The product has not been damaged, modified or recalled.
The Government's Buy Safe, Be Safe guidance recommends manufacturer-approved batteries, chargers and replacement parts and warns against tampering with battery packs.
Safe charging and storage
- Follow the battery and charger manufacturers' instructions.
- Charge on a hard, flat surface where heat can dissipate.
- Keep the bicycle and battery away from escape routes.
- Do not leave charging unattended or continue while asleep.
- Allow a hot battery to cool before charging.
- Stop using a pack that is damaged, swollen, leaking, unusually hot, noisy or producing an unusual smell.
- Do not dismantle or modify the battery.
- Use an appropriate recycling or disposal service; do not put an e-bike battery in household waste.
Which battery should you choose?
Start with the voltage and controller specification already approved for the bicycle or conversion kit. Then compare watt-hours, discharge capability, mounting format, weight, cells, connectors, charger and documentation.
If you are building a bicycle from separate parts, choose the motor, controller and battery as a documented compatible system. Browse 36V, 48V, 52V and 72V e-bike batteries or compare complete electric bike conversion kits. The installation guide explains the typical fitting sequence.
E-bike battery FAQs
Can I use a 48V battery on a 36V motor?
Only if the motor, controller, display, wiring and other components are explicitly designed for that voltage. Do not assume a higher voltage is safe.
Is 52V better than 48V?
Not inherently. The correct choice is the voltage the complete system supports. Capacity, discharge capability, cells, BMS, fit, charger and documentation also matter.
How do I compare 36V and 48V battery capacity?
Multiply nominal voltage by amp-hours to estimate nominal watt-hours, then compare physical fit, weight, discharge capability and usable system compatibility.
Can I use any charger with the same plug?
No. Output voltage, charging current, connector and polarity must all be compatible and the charger should be supplied or approved by the battery manufacturer.
Does battery voltage decide whether an e-bike is road legal?
No. UK road-use status depends on the completed bicycle's EAPC compliance or relevant motor-vehicle requirements, not battery voltage alone.
Compare compatible options: visit the E-Bike Batteries UK collection and check every product's voltage, BMS, connector, charger and dimensions against your system before ordering.
Last reviewed: 9 August 2026. This guide is general information and does not replace manufacturer instructions or a professional compatibility and safety assessment.
