Quick answer: a Bafang battery is compatible only when its nominal voltage, discharge capability, connector, polarity, charger, display and physical mount match the exact motor and controller configuration. Do not choose 36V, 48V or 52V from the motor family name alone—read the labels and documentation for the complete system.
This guide explains how to check battery compatibility for a Bafang-equipped bicycle or conversion project without assuming that every BBS, M-series or hub-motor configuration uses the same battery. For available case and capacity options, browse e-bike batteries in the UK.
Bafang battery compatibility at a glance
| Check | Where to find it | What must match |
|---|---|---|
| Nominal voltage | Motor/controller label and system manual | Battery voltage must be inside the supported range |
| Controller current | Controller label or technical specification | Battery cells and BMS must supply the required current |
| Display/HMI | Display model label and dealer manual | Display and firmware must support the configured voltage and system |
| Connector and polarity | Wiring diagram and physical inspection | Pin assignment, polarity and current rating must be confirmed |
| Charger | Battery and charger labels | Charging voltage, current, connector and polarity must match |
| Mounting case | Battery drawing and bicycle measurements | Rail, case, key and removal path must fit securely |
1. Identify the exact Bafang system
Start with the motor model, controller model, display model and any original system documentation. “Bafang” describes a manufacturer, not one universal electrical standard. Different motors, controllers and displays can be produced for different nominal voltages, connectors and communication systems.
Bafang's official downloads and service information notes that compatibility depends on matched systems and directs users to the brand owner or service contact for the detailed matching list. That is a useful warning against combining parts solely because they share a logo.
2. Read the motor and controller voltage labels
Record every voltage printed on the motor, controller and original battery. The controller is especially important because it switches and regulates power from the battery to the motor. A controller designed for one voltage range may not tolerate another.
Do not assume that a 48V battery can replace a 36V pack or that a 52V pack is a safe “upgrade” to every 48V Bafang system. Some components are offered in multiple-voltage versions, but the specific installed version and firmware still need confirmation.
3. Confirm the display or HMI
The display is part of the electrical and communication system. For example, Bafang lists the DP C020.C display with 36V, 48V and 52V nominal-voltage versions. This does not mean every display or every motor/controller combination automatically supports all three voltages.
Match the exact display model, connector and dealer-manual requirements. If the system uses CAN communication or proprietary firmware, physical connector compatibility alone is not enough.
4. Match BMS and discharge current
The battery-management system must support the controller's continuous and peak current requirements, and the cells must be suitable for that demand. A battery can have the correct voltage yet shut down, overheat or operate unsafely if the BMS or cell configuration is underspecified.
The UK's statutory lithium-ion battery safety guidelines describe protection against over-voltage, under-voltage, over-current and unsafe temperatures as core functions of an effective battery protection system.
5. Check capacity in watt-hours
Amp-hours cannot be compared fairly across different voltages without calculating nominal watt-hours:
Watt-hours = nominal voltage × amp-hours
- 36V × 20Ah = approximately 720Wh
- 48V × 17.5Ah = approximately 840Wh
- 52V × 19.2Ah = approximately 998Wh
More watt-hours generally mean more stored energy within a compatible system, but not a guaranteed distance. Hills, assistance level, total load, wind, temperature, tyre pressure and drivetrain condition all affect range.
See the full 36V vs 48V vs 52V e-bike battery guide for a broader voltage and capacity comparison.
6. Verify connector, polarity and wiring
Check the wiring diagram and pin assignment, not just the plug shape. Similar connectors can use different polarity or communication pins. Never connect a new battery based only on wire colour, and never reverse polarity while testing.
Adapters add another connection and possible failure point. Where an adapter is necessary, it must have the correct voltage and current rating, secure contacts, strain relief and verified polarity. Use a competent e-bike technician if any wiring change is required.
7. Measure the battery case and mount

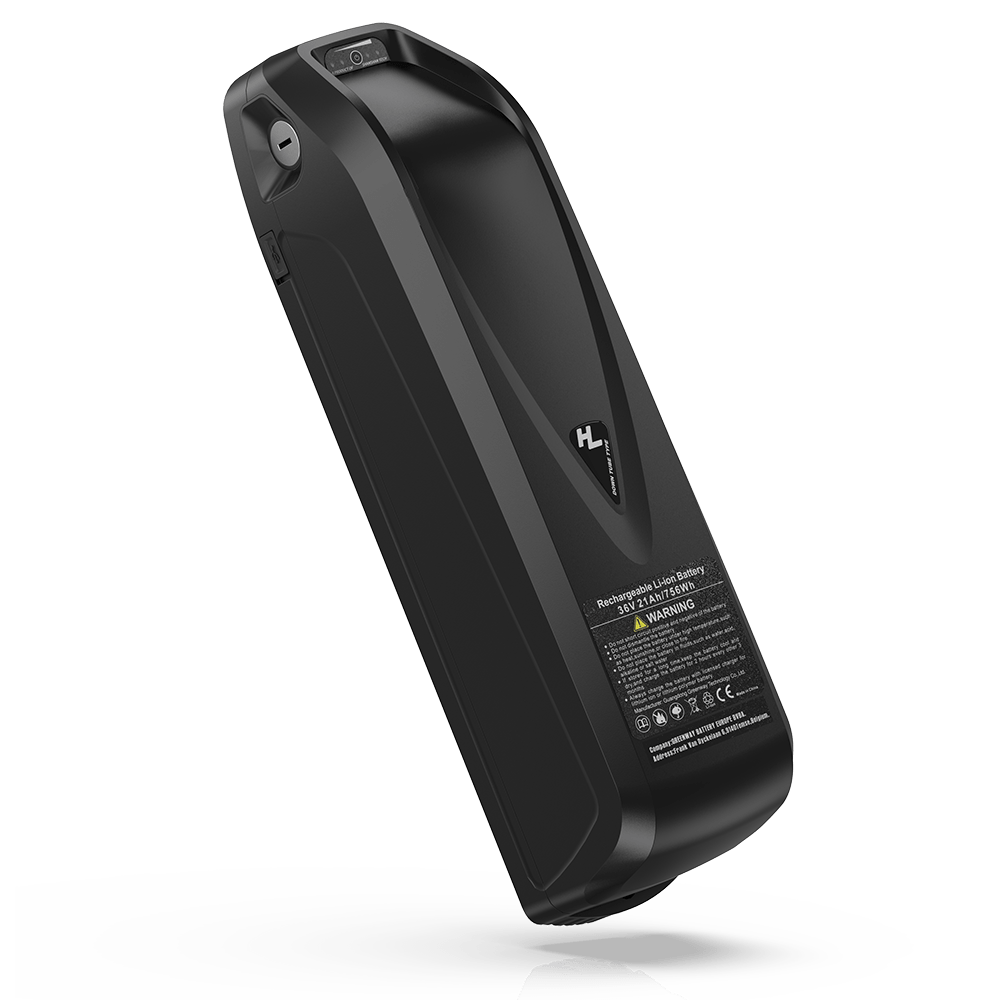

Bafang conversion systems can be paired with different battery-case styles when the complete specification is compatible. Common formats include Hailong-style down-tube cases, rear-rack batteries and triangle packs.
- Use the published case and rail dimensions to make a cardboard template.
- Include the space needed to slide or lift the battery off its mount.
- Check bottle-boss position, cable exits and the battery key.
- Turn the handlebars and move the cranks through their full travel.
- Allow for suspension movement, tyres and chainring clearance.
- Confirm the mount is structurally suitable for the battery's weight.
The conversion-kit compatibility checklist covers bottom brackets, dropouts, brakes and the rest of the donor bicycle.
8. Use the correct charger
A charger must match the battery chemistry, charging voltage, current, connector and polarity. The fact that a plug fits does not prove compatibility. Use the charger supplied with the battery or one explicitly approved by the battery manufacturer.
Charge on a hard surface away from escape routes, follow the manufacturer instructions, unplug when complete and do not leave the battery charging unattended or while asleep.
BBSHD and high-power builds
The Bafang BBSHD is a high-powered mid-drive platform that requires careful bottom-bracket, drivetrain, brake, battery and controller assessment. Read the Bafang BBSHD UK buying guide before selecting components.
A 1000W system does not meet the 250W maximum continuous rated power condition for an ordinary UK EAPC. Public-road use can therefore require approval, registration, tax, insurance, licensing and appropriate protective equipment. Do not treat battery choice as separate from the intended legal use.
Bafang battery pre-purchase checklist
- Exact motor, controller and display models recorded.
- Supported nominal voltage confirmed from labels and documentation.
- Controller current requirement matched to the cells and BMS.
- Connector pin assignment and polarity verified.
- Display, communication protocol and firmware compatibility confirmed.
- Battery case, rail and removal path measured.
- Correct charger supplied or manufacturer-approved.
- Warranty, instructions and safety information available.
- Completed bicycle appropriate for its intended UK use.
Compatible shopping paths
Compare 36V, 48V and 52V e-bike battery options, including the multi-voltage Hailong and Parrot battery range. These are not universal Bafang batteries: select a variant only after matching the full system specification.
If you are still deciding between motor types, read Bafang mid-drive vs hub motor for hills or compare available electric bike conversion kits.
Bafang battery FAQs
Can I use any 48V battery with a Bafang motor?
No. Voltage is only one requirement. Controller current, BMS, cells, connector, polarity, display, charger and physical mount must also be compatible.
Can a Bafang 48V system use a 52V battery?
Only when the exact motor, controller, display, firmware and other components are explicitly specified to support 52V. Do not infer support from the motor-family name.
How many amps should a Bafang battery supply?
The battery and BMS must meet the exact controller's continuous and peak current requirements. Read the controller label and system documentation or ask the supplier.
Are Hailong batteries compatible with Bafang?
Hailong describes a case style, not universal electrical compatibility. Voltage, BMS current, connector, polarity, rail and dimensions still need checking.
Does changing the battery make a Bafang bike road legal?
No. UK road-use status depends on the completed bicycle's motor rating, assisted-speed behaviour, pedals and any required vehicle approval—not the battery alone.
Before ordering: compare e-bike batteries for compatible conversion systems, then confirm the motor, controller, display, BMS, connector, charger and case measurements with the product supplier.
Last reviewed: 9 August 2026. This guide is general information and does not replace Bafang dealer documentation, component-manufacturer instructions or professional assessment.
